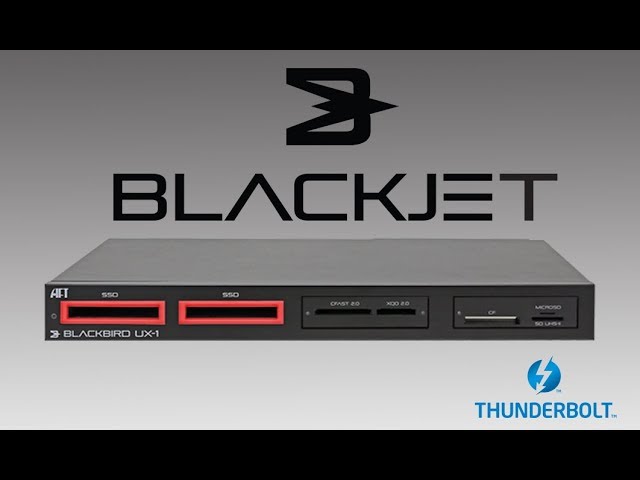

BLACKJET UX-1

THUNDERBOLT ™ 3
SSD · CFast 2.0 · XQD 2.0 · CF · SD · microSD
Thunderbolt 3 Cinema Dock Reader
Thunderbolt 3 Technology provides data speeds up to 40Gb/s
Thunderbolt 3 Media Reader 4K Video
SSD, CFast 2.0, XQD 2.0, CF, SD, microSD media slots allows you to increase your Video Workflow
Thunderbolt 3 Media Reader 4K Video
Thunderbolt 3 Connection with Daisy Chain feature
- Compatible with Thunderbolt 2 with adapter -
Thunderbolt 3 Media Reader 4K Video
IN THE STUDIO
Thunderbolt 3 Media Reader 4K Video
ON LOCATION
FEATURES



  • Dual Thunderbolt™ 3 Connections with speeds of up to 40Gb/s

  • 2nd Thunderbolt 3 port supports Daisy Chaining of five additional
    Thunderbolt devices, a 5K display, or one USB device

  • Dual SSD can be RAID 0, RAID 1, JBOD (Software RAID)

  • CFast 2.0, XQD 2.0, CF, SDXC and microSD media cards supported

  • Rackmountable for 1U specifications

  • Compatible with Thunderbolt 2 with Thunderbolt 3 adapter

  • Optional Reader Modules available (sold separately)

EXTRA MODULES AVAILABLE

CFast 2.0 / XQD 2.0


CF / SD / microSD


RED MINI-MAG  (Coming March 2019)

SPECIFICATIONS

Dimensions (W x H x D):

425mm x 212mm x 44mm


Power Requirements:

AC Power


Transfer rate:

Up to 40Gb/Sec via Thunderbolt 3



System Requirement:

Thunderbolt 3 Port on Computer


OS System Requirements:

macOS 10.12 (Sierra ) and higher

Windows 10  (Thunderbolt 3)

Windows 8  (via Thunderbolt 2 Adapter)

Supported Media Cards:

SSD

CFast 2.0

Sony XQD™ 2.0

CompactFlash™ UDMA
Secure Digital eXtended Capacity (SDXC UHS-I/II)
micro Secure Digital (microSD)



Manufacturing Information:

Made in Taiwan

TAA Compliant

Package Contents:

Blackjet UX-1

Thunderbolt 3 Cable

Power Supply

User's Guide

1-year limited manufacturer warranty​

Blackjet™ is a trademark of Atech Flash Technology, Inc.
